I. Buying a Dust Collector Is Not Just About Price! 10 Critical Factors Engineers Advise You to Confirm First

     Many customers consult about dust collectors, and the first sentence is:
"How much is a 10,000 air volume dust collector?"
This question is very common, but from an engineering perspective, it really cannot be quoted based on just this one sentence.
For the same 10,000 air volume, the treatment plan may be completely different.
Some are suitable for cartridge dust collectors, some are suitable for bag dust collectors; some need to have cyclone pretreatment first
Some need to consider high temperature, sparks, caking; in some cases, the real problem on site is not the main unit
But the hoods, ducts, fan, and dust discharge.
Therefore, when buying a dust collector, don't just ask "how much",

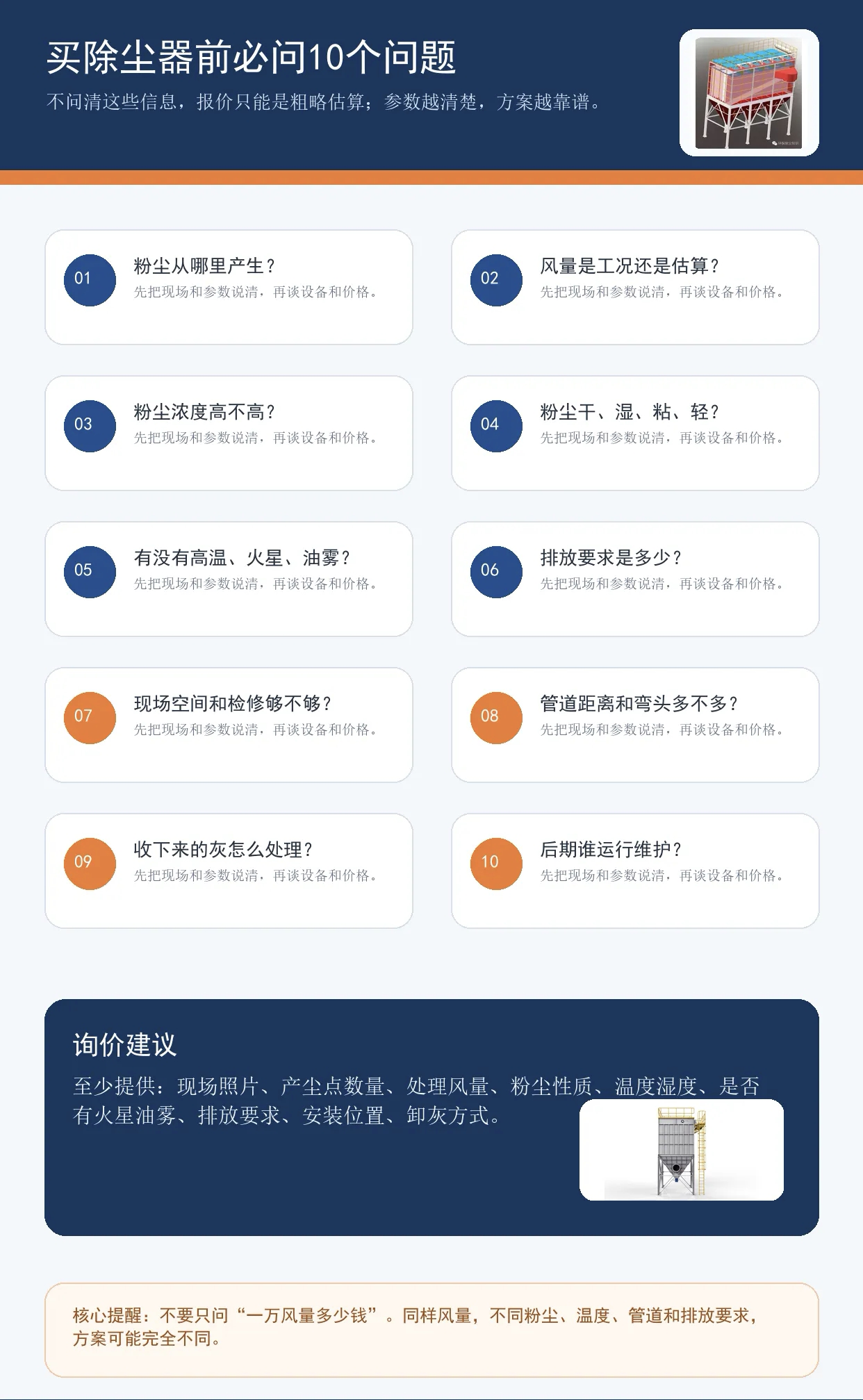

What really needs to be clarified first are the following 10 questions.

01 What risks can differences in dust removal effectiveness cause?
    The first step of a dust removal system is not to select equipment first, but to first look at the distance between the dust removal and the spray gold machine.
If the dust source equipment of the spray gold is not collected well, no matter how large the subsequent dust collector is, the effect may be poor. Common problems include:

• The air path design of the air inlet and air outlet of the spray gold machine;

• The dust has already spread and floated around inside the gun chamber before being sucked away;

• Whether the diameter design of the hood and duct meets the air velocity;

• Whether the duct layout is reasonable;

• Uneven distribution of air volume at multiple suction points.

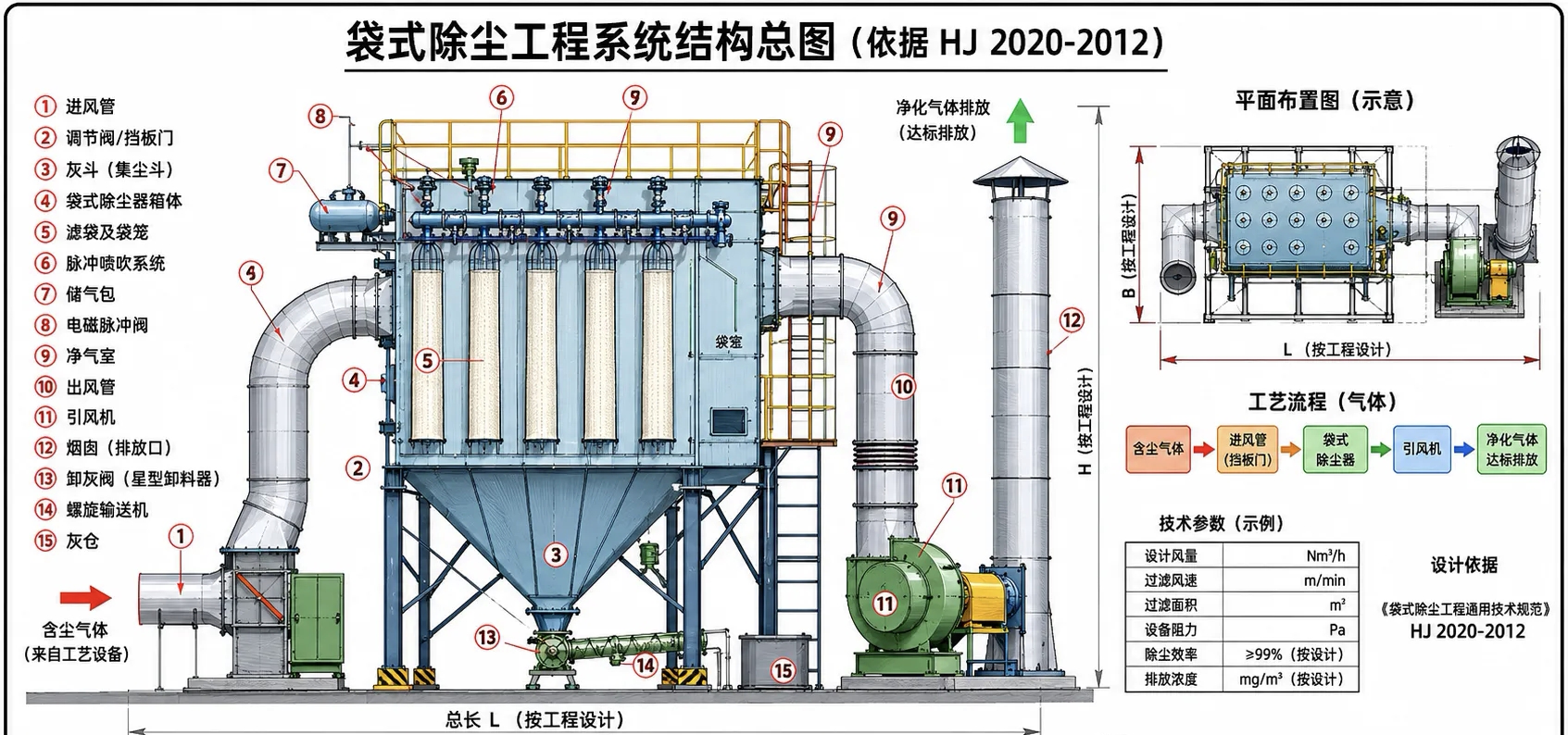

• According to the engineering logic of HJ 2020-2012 "General Technical Specifications for Bag Dust Removal Engineering",

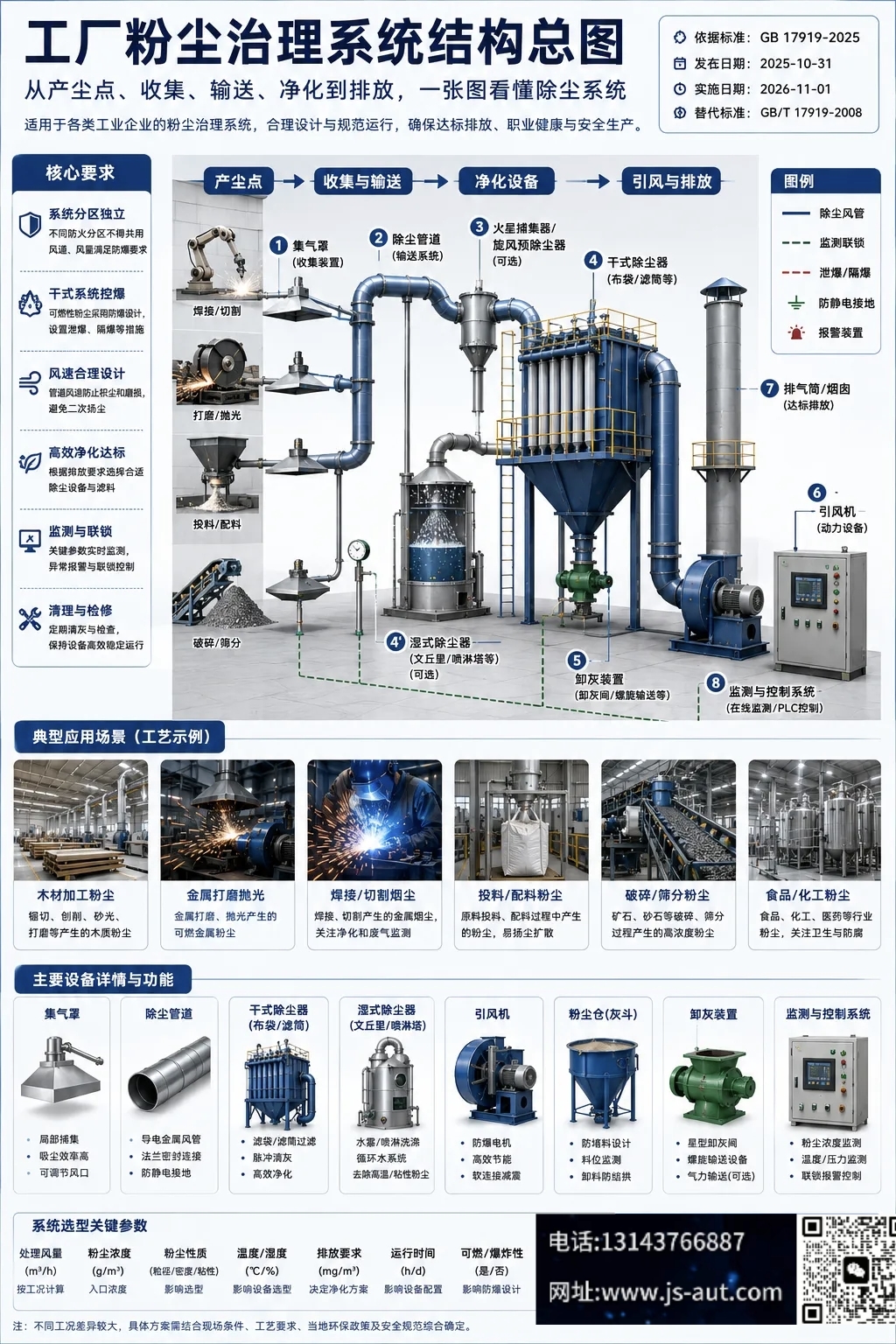

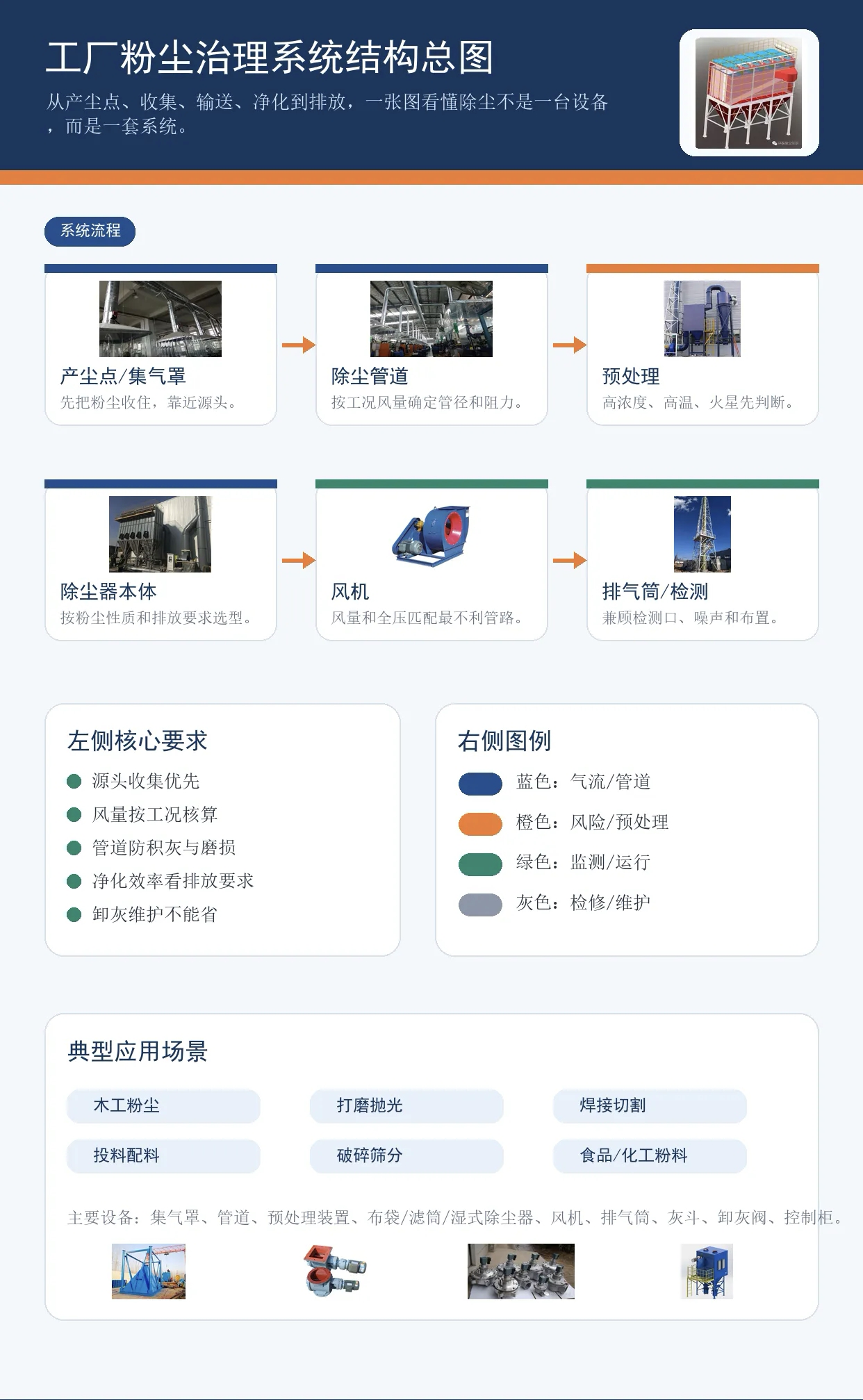

  A bag dust removal system is not a single main unit; it includes
  Dust removal ducts, bag dust collector, fan, exhaust pipe, dust discharge and dust conveying devices, and other links.
  Therefore, dust removal does not start from "buying one piece of equipment", but from "whether the dust can be effectively collected".

02 What Exactly is the Air Volume?

Many people would say: "The air volume for my project is roughly 10,000."

• Is it the total air volume, or the air volume of a single dust extraction point?

• Is it the operating condition air volume, or the standard condition air volume?

• Is it the normal operation air volume, or the maximum load air volume?

• Are multiple pieces of equipment operating simultaneously?

• Is there a possibility of adding new dust extraction points in the later stage?

03 Is the dust concentration high or not?
     The higher the concentration of metal spraying dust, the higher the requirements for cleaning, filter media, hopper, and dust discharge system.
If high-concentration dust directly enters the bag, problems such as increased pressure difference, difficulty in cleaning, shortened filter media life, and dust hopper clogging may occur.
Some working conditions require consideration of cyclone pretreatment, spark trap, sedimentation, or other pretreatment devices.

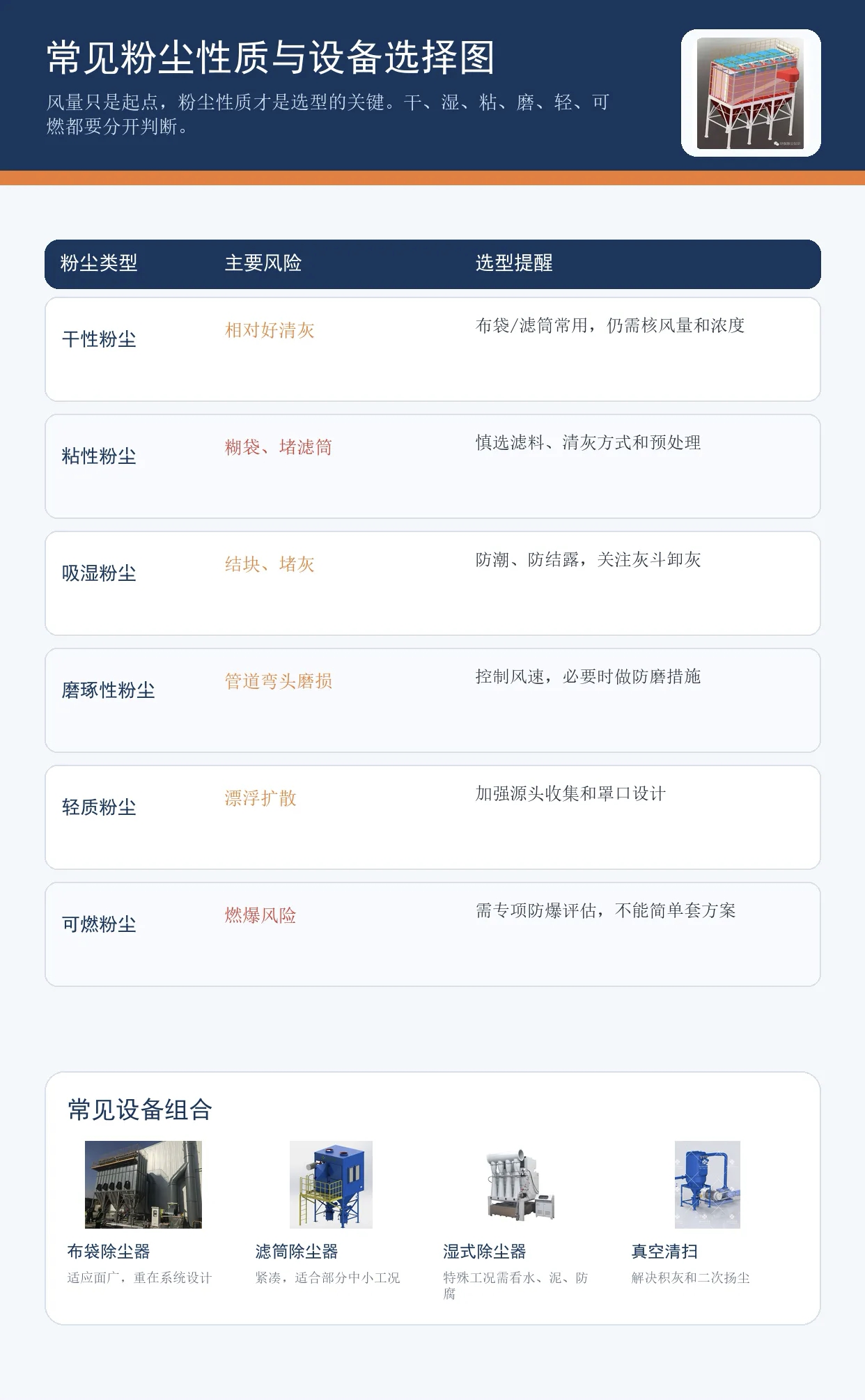

04 The properties of metal spraying dust vary greatly: dry, wet, sticky, and light floating, multiple states.
      The nature of the dust has a very significant impact on equipment selection.

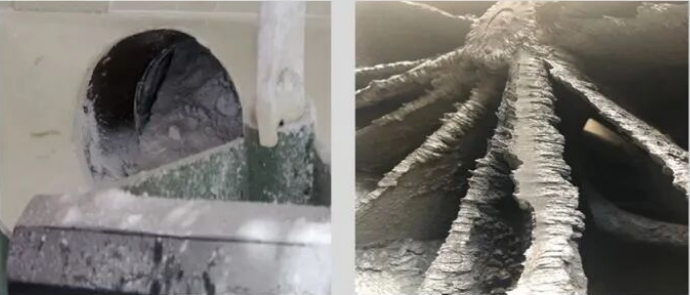

Metal spraying dust is dry dust with adhesion: sticky dust easily cakes the bags; after absorbing moisture and encountering humidity, it is prone to caking;
The sedimentation and adhesion of dust can wear down pipes, elbows, and equipment.

05 Are there high temperatures, sparks, or moisture present?
    This is an area often overlooked in many projects.

If sparks are present, they may burn the fabric bags and even pose safety risks.

If humidity is high and temperatures are low, condensation can form and clog the bags.

The specifications state that for scenarios involving incandescent particles or sparks, excessive temperatures, overly high dust concentrations, or the need for staged dust recovery, corresponding pretreatment devices should be installed before the bag filter.

Key note: Wet dust removal, high-temperature cooling, and fire/explosion prevention are not universal templates—they must be evaluated based on specific operating conditions.

06 What are the emission requirements?
     Emission requirements differ across regions, industries, and projects.
Some projects focus on particulate matter emission concentrations, while others also need to consider workplace dust concentrations, uncontrolled emissions, boundary particulate matter, noise, and other issues.
The stricter the emission requirements, the higher the demands on filter materials, filtration air velocity, sealing structures, dust cleaning methods, inspection ports, and operation/maintenance.
It is best to provide local emission standards, environmental impact assessment requirements, and acceptance requirements together.

07 Is there enough space on-site?

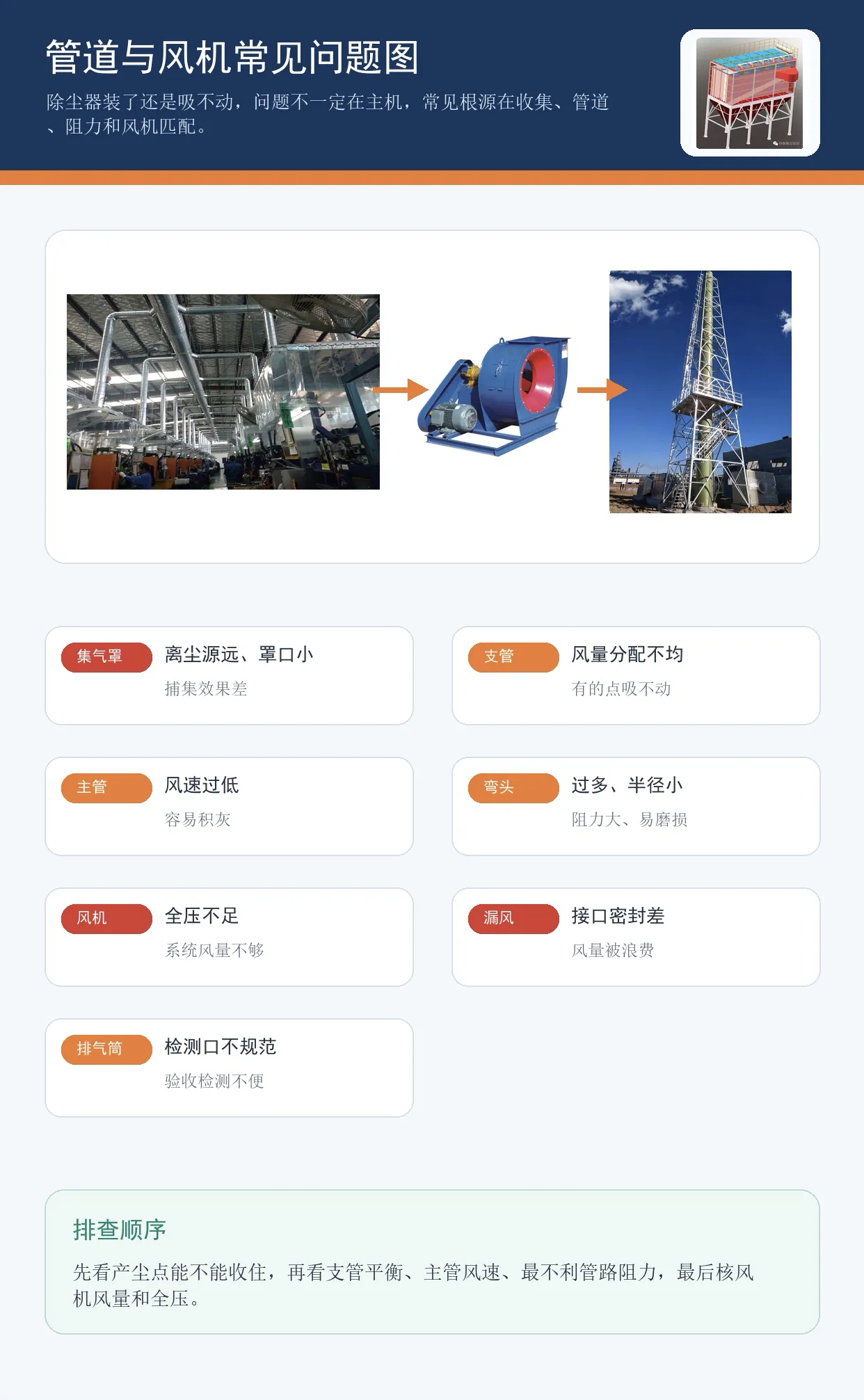

A dust collector is not just about the equipment itself—you also need to confirm whether the site can accommodate installation, assembly, and maintenance. On-site verification must include:

·Installation location of the dust collector;

·Too many elbows;

·Unreasonable pipe diameter;

·Unbalanced airflow in branch pipes;

·Low pipeline velocity leading to dust accumulation;

·High pipeline velocity causing wear and increased energy consumption;

·Insufficient total pressure of the blower;

·Blower selection does not account for system resistance.

The specifications require that dust collection pipeline velocity be selected based on factors such as particle size, density, abrasiveness, and concentration of the dust—both to prevent excessive wear from high velocity and to avoid dust accumulation from low velocity. Therefore, the dust collection system must be designed as an integrated unit, not by simply choosing a larger main unit.

09 How to Handle the Collected Dust?

• Whether the ash hopper will experience bridging and dust blockage;

• Whether the star unloader valve is suitable;

• Whether to use ash barrels, ton bags, or screw conveyors;

• Whether the dust unloading process will cause secondary dust emissions;

• Whether the dust needs to be recovered;

• Whether the dust is hygroscopic, prone to caking, corrosive, or combustible;

• Whether the ash cleaning and unloading processes are interlocked.

10 Who will maintain it in the later stage?

     A dust collector is not a finished job once bought back and powered on.

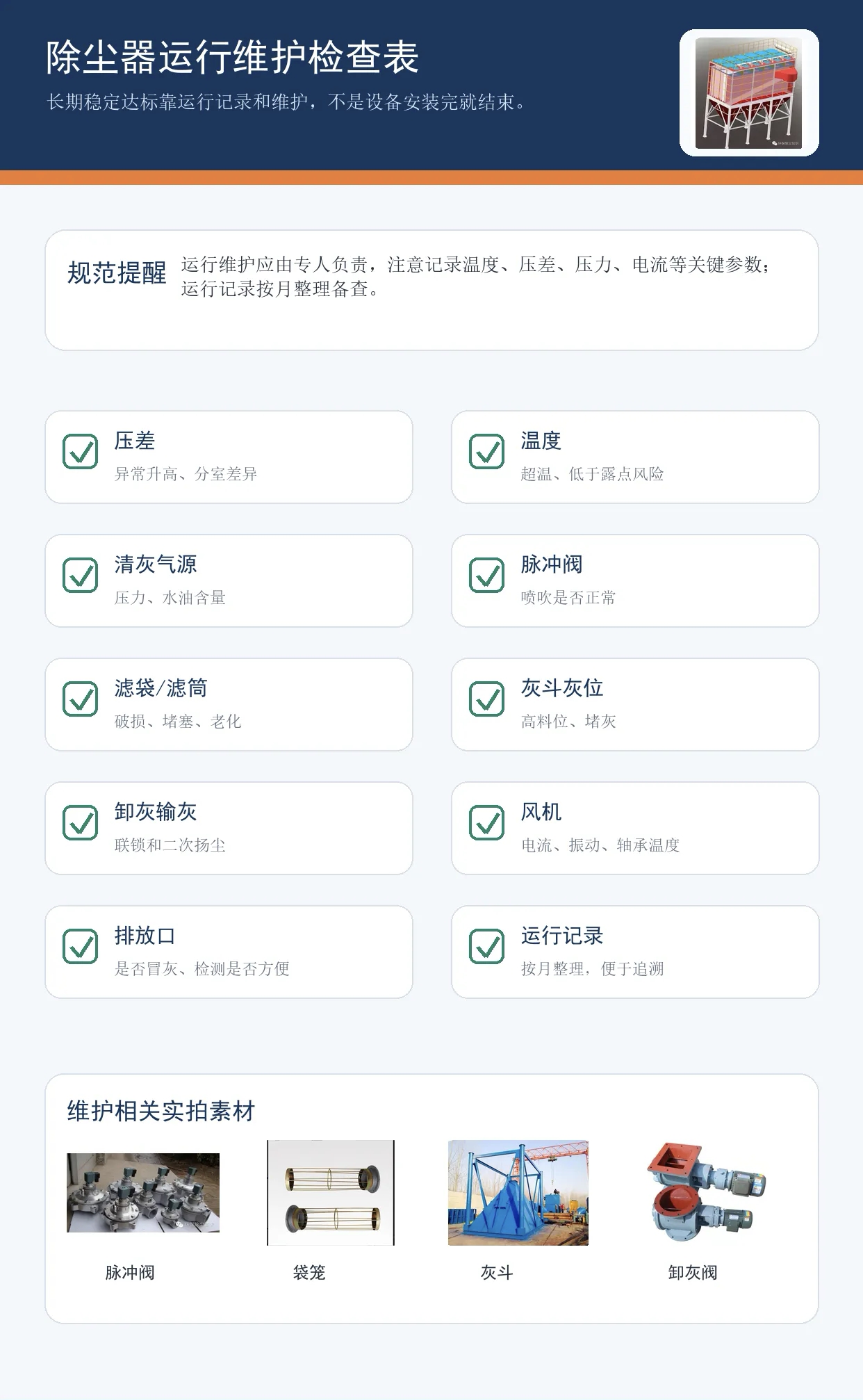

In the later stage, attention must still be paid to the pressure drop, temperature, cleaning air source pressure, pulse valves, filter bags or filter cartridges, ash level in the ash hopper, fan current, bearing temperature, whether dust is emitted from the emission port, and whether the operation records are complete.
Specifications also have clear requirements for operation and maintenance: there should be dedicated personnel responsible for it, key parameters such as temperature, pressure drop, pressure, and current should be recorded, and operation records should be organized monthly for future reference.
Long-term stable compliance relies on the equipment, design, installation, commissioning, and maintenance working together.

    Final Summary

    Equipment is merely the result; operating conditions are the true source. If the preliminary parameters are unclear, no matter how cheap the quotation looks, problems such as insufficient suction, bag blinding, dust emission, ash blockage, failure to pass acceptance, and troublesome maintenance may still occur in the later stage. The clearer the parameters, the more reliable the solution; the more explicit the operating conditions, the closer the quotation is to the actual project.

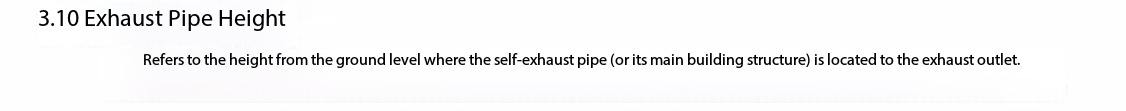

II. How to Determine the Height of Waste Gas Emission Chimneys (Exhaust Stacks): 15m, or 3m/5m Higher than Surrounding Buildings?

In environmental protection treatment, the collection and treatment of odorous gases from sewage stations and the control of dust and atmospheric pollutants generated in various workshops require governance measures. After treatment, the gases must be discharged at high altitudes through exhaust stacks. The height is generally required to be no less than 15 meters. This regulation is mainly based on atmospheric diffusion principles, environmental risk prevention and control, and regulatory uniformity.

Exhaust stacks are also known as chimneys, and high-altitude discharge through chimneys is classified as organized emission. If the height is insufficient or if there is no exhaust stack, the emission may be classified as unorganized emission, or it may be subject to a 50% reduction in the emission standard. Unorganized emission has lower standard limits and relatively stricter requirements. The height of an exhaust stack is measured from the local ground plane to the top outlet of the stack. Therefore, even if the exhaust stack is installed starting from the roof, a portion of the height can be saved. It is not necessary for the total length of the exhaust stack to meet 15m; it only needs to satisfy that the height difference between the exhaust stack outlet and the ground plane is ≥15m.

High-altitude emission has the following advantages:
A. Promote high-altitude diffusion of pollutants: A height of more than 15 meters helps lift the waste gas into the mixing layer, utilizing high-altitude wind speeds to accelerate dilution and reduce the accumulation of pollutants near the ground.
B. Avoid the "building downwash effect": If the exhaust stack is lower than surrounding buildings, waste gas easily circulates and stagnates at low altitudes, leading to increased local concentrations. A 15-meter height can effectively avoid this problem.
C. Meet the baseline requirements for emission rates: Most industry standards use 15 meters as the baseline height to calculate allowable emission rates. Falling below this value requires strict execution at 50%, which increases compliance costs.
D. Facilitate regulation and monitoring: Standardized heights, combined with the installation of sampling ports and monitoring platforms, ensure that environmental protection departments can effectively carry out supervisory monitoring.

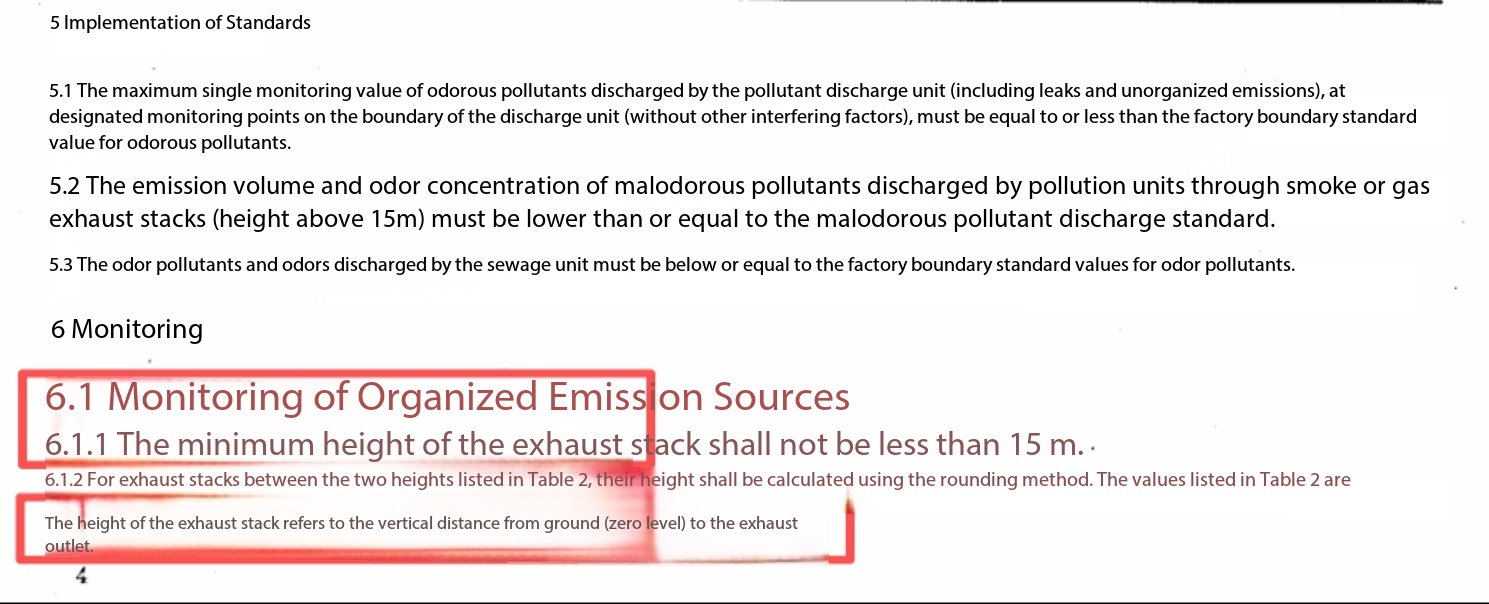

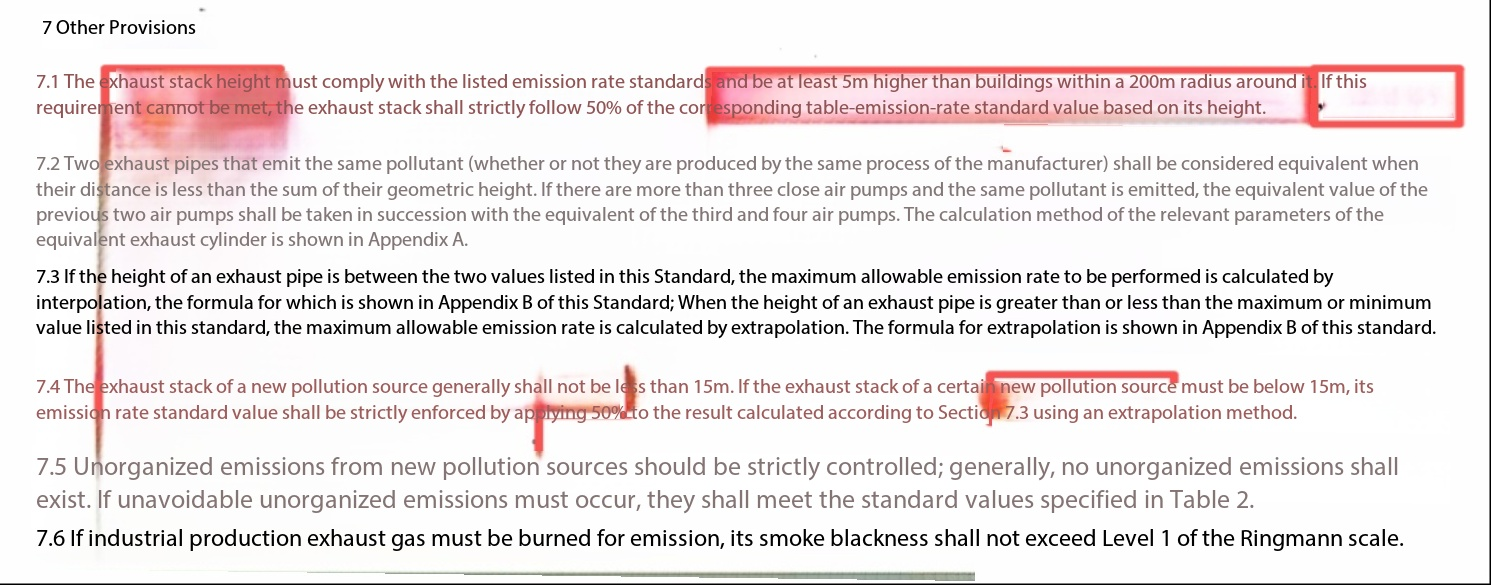

Common requirements for exhaust stack heights include:

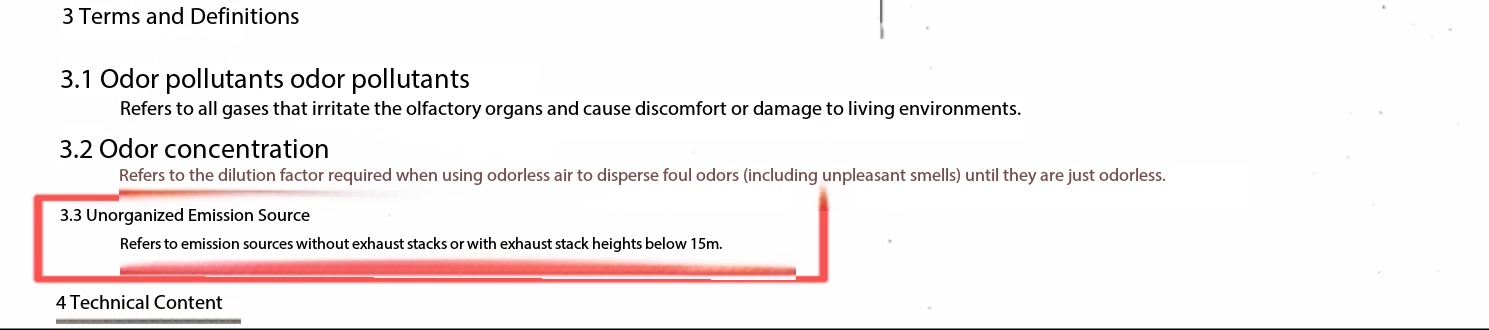

(2) Emission Standard of Odor Pollutants (GB14554-93): In this standard, unorganized emission sources are defined as emission sources without exhaust stacks or with exhaust stacks lower than 15m in height (Article 3.3 of the standard). According to the requirements of Article 6.1.1 of the specification, the minimum height of organized emission circular exhaust stacks shall not be lower than 15m. The specification provides different exhaust stack heights, including 15m, 20m, 25m, 30m~120m, etc. The height of the exhaust stack refers to the vertical height from the ground (zero ground level) to the exhaust outlet. Although it does not require the exhaust stack to be several meters higher than surrounding buildings as specified in the Integrated Emission Standard of Air Pollutants, there is no 50% reduction in the emission rate when the exhaust stack height is insufficient. This is because Article 3.3 of the standard directly stipulates that exhaust stacks lower than 15m are classified as unorganized emission sources and must comply with the plant boundary standard values.

III. Compliance Self-Inspection: Key Facility Inspection Points and Explosion Control Technology Analysis for Dust Explosion-Involved Enterprises

Introduction

In the production and operation of enterprises, dust pollution not only causes emission exceedance but also hides huge explosion safety hazards. Dust explosion-involved accidents are characterized by strong suddenness, great destructive power, and high casualty risks, making them a key control area in environmental protection inspections and safety production supervision.

Combining our practical experience in frontline environmental consulting and hazard inspection, we systematically sort out the core inspection points for dust pollution prevention and control facilities and professional explosion control technical measures, providing standardized references for compliant rectification and daily operation and maintenance inspections of dust control in various enterprises.

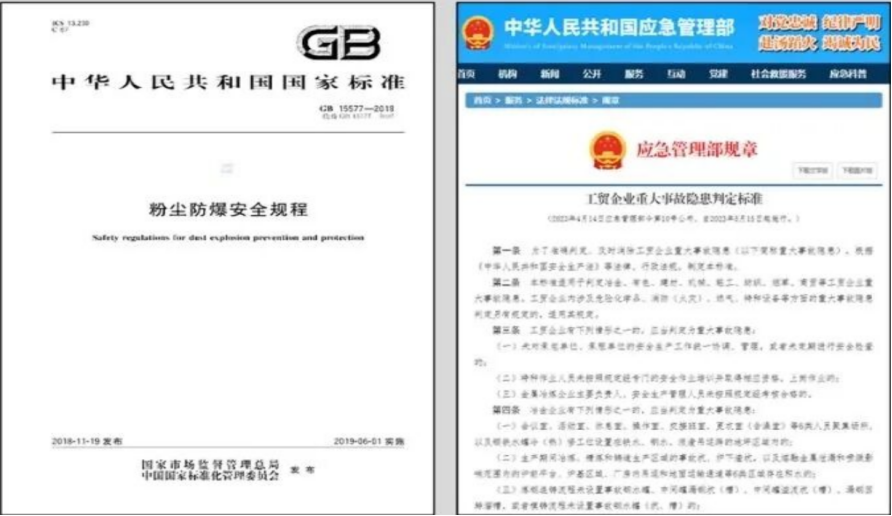

Currently, ecological environment and emergency safety supervision are becoming increasingly stringent. According to standards and regulations such as the Safety Regulations for Dust Explosion Prevention (GB15577-2018), Safety Technical Specifications for Dust Removal Systems in Dust Explosion Hazardous Areas (AQ4273-2016), and the Regulations on Dust Explosion Prevention Safety of Industrial and Trade Enterprises

Inspection Key Points

Inspection of Production Process Equipment (Source Dust Control)

Equipment tightness: Dust-generating equipment shall be fully enclosed with intact structure, and there shall be no damage or dust leakage at connectors and discharge ports. Open operation is prohibited to prevent accumulation of suspended dust.

Pre-control of ignition sources: Magnetic impurity removal devices shall be installed at the feed end of equipment to prevent sparks caused by collision of metal sundries; high-speed and high-friction equipment shall be equipped with temperature monitoring and overload protection to avoid dust ignition caused by overheating of equipment.

Spark detection and extinguishing: Equipment with high spark risks such as sanders and shredders shall be equipped with spark detection and extinguishing devices to block ignition sources in real time. The absence of such devices shall be deemed a major hidden danger.

Compliant layout: Equipment involving explosive dust shall not be arranged in underground or semi-underground spaces and shall be kept away from densely populated areas. Equipment spacing and evacuation passages shall meet specification requirements.

(1) Special Inspection of Dust Removal Systems (Core Priority)

Independent and compliant systems: Separate dust removal systems shall be provided for different processes and different fire compartments. Mixing of dust and waste gas dust removal systems is prohibited, and cross-compartment pipeline connection is forbidden.Compliant dust extraction methods: Gravity settling chambers and tunnel-type dust ducts are banned. Negative-pressure dust extraction shall be adopted for aluminum and magnesium metal dust. Positive-pressure dust extraction systems shall be equipped with complete fire prevention, explosion-proof and spark elimination measures. Equipment selection and layout: Standard compliant dry explosion-proof dust collectors shall be uniformly used for explosive dust; simple cloth bag and open dust extraction equipment are forbidden. Dust collectors shall be arranged outdoors independently as a priority; indoor installation shall meet special requirements for explosion venting and explosion prevention.Pipeline operation and maintenance control: Dust removal pipelines shall be intact without damage, blockage or dust accumulation. Dust-prone parts such as elbows and tees shall be cleaned regularly. Pipelines shall be well sealed, and unauthorized modification or connection of pipelines is strictly prohibited.Qualified air volume and wind speed: The dust removal system shall operate under stable working conditions, with air volume and wind speed meeting process requirements to effectively collect dust at dust generation points and eliminate risks of dust deposition insidepipeline

Explosion venting devices: Dust collectors, silos and dust removal pipelines shall be equipped with explosion venting components, with an explosion venting area of no less than 0.05 square meters per cubic meter. Explosion vent outlets shall face outdoor safe zones and shall not directly face personnel posts, and the devices shall be free from damage, shielding or failure.

Explosion isolation devices: Explosion isolation valves shall be installed at pipeline branches, equipment inlets and outlets, as well as cross-area pipelines to block the propagation of flame and shock waves. Explosion protection shall not rely solely on isolation measures, and shall be used in combination with explosion venting and explosion suppression.

Explosion suppression and inerting devices: Automatic explosion suppression systems (response time ≤ 50ms) shall be configured for high-risk scenarios such as metal dust and ultra-fine combustible dust. Inerting systems shall monitor oxygen concentration in real time and stably control it at no more than 8%, with regular calibration and data retention.

Blast-resistant structures: The equipment shells, supports and building enclosure structures in explosion-prone areas shall meet blast resistance standards, without structural aging, damage or deformation.

Configuration of explosion-proof electrical equipment: Motors, switches, lamps, distribution boxes and other equipment in hazardous areas shall all be explosion-proof equipment of matching grades, and the mixed use of ordinary electrical equipment is strictly prohibited.

Earthing and static prevention: Dust removal equipment, pipelines, racks and silos shall be earthed with intact bridging connections between equipment and qualified earthing resistance, free from loose connections, corrosion or open circuits to prevent static charge accumulation.

Standardized circuit control: Electrical circuits shall be laid in explosion-proof conduits without exposure, unauthorized wiring, aging or damage, and the joints shall be well sealed to strictly prevent electric sparks.
