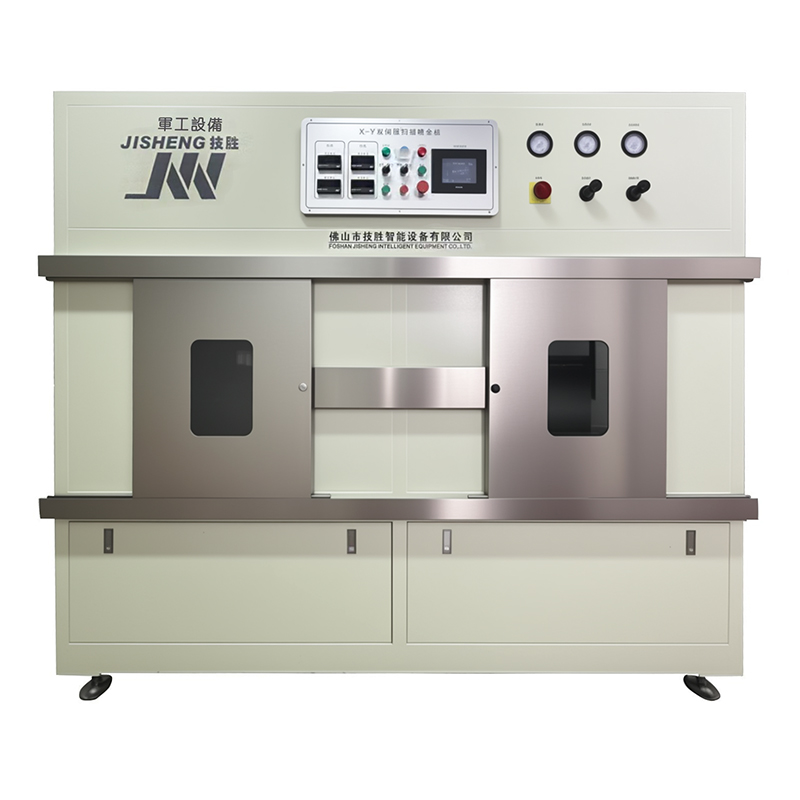

Metal Spraying Machine

① External Dimensions: 2.5×1.45×2.1 meters ② Fixture: 480×380mm (net dimensions) ③ Number of Guns: 4 guns ④ Dust Removal Method: Top air intake, top exhaust ⑤ Wire Feeding Method: Front and rear wire feeding ⑥ Gun Chamber Layout: 2+2 ⑦ Operation Method: Synchronous belt support type ⑧ Feeding Method: Manual hanging frame

① External Dimensions: 9.0 x 3.0 x 2.5 meters ② Clamp: 550 * 580 mm ③ Number of Guns: 16 guns (8 double-headed guns) ④ Dust Removal Method: Top air intake, top exhaust ⑤ Wire Feeding Method: Rear wire feeding ⑥ Gun Chamber Layout: 8+8 ⑦ Operation Method: Synchronous belt support type ⑧ Feeding Method: Automatic frame hanging (inlet and outlet loading and unloading)

① External dimensions: 2.1 × 1.95 × 2.38 meters ② Number of guns: 3 (single-head gun) ③ Dust collection method: Tail pull ④ Wire feeding method: Rear wire feeding ⑤ Central mechanism

(1) The equipment has good stability and is easy to operate; (2) The spray gun uses dynamic power supply, which does not block or explode the wire; (3) The equipment has good sealing performance; (4) It uses a unique design of upper exhaust to remove dust; (5) The equipment is equipped with temperature and humidity detection functions. (6) It is equipped with Jisheng's unique dust removal system, which makes the use effect more significant.
