AM-III New Energy Six-Gun Metal Spray Machine

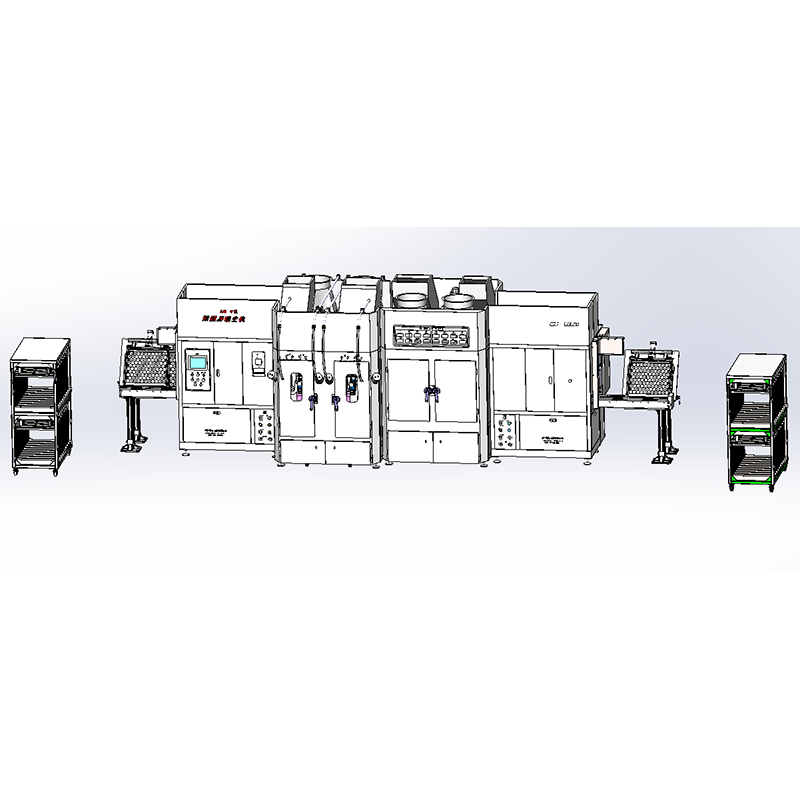

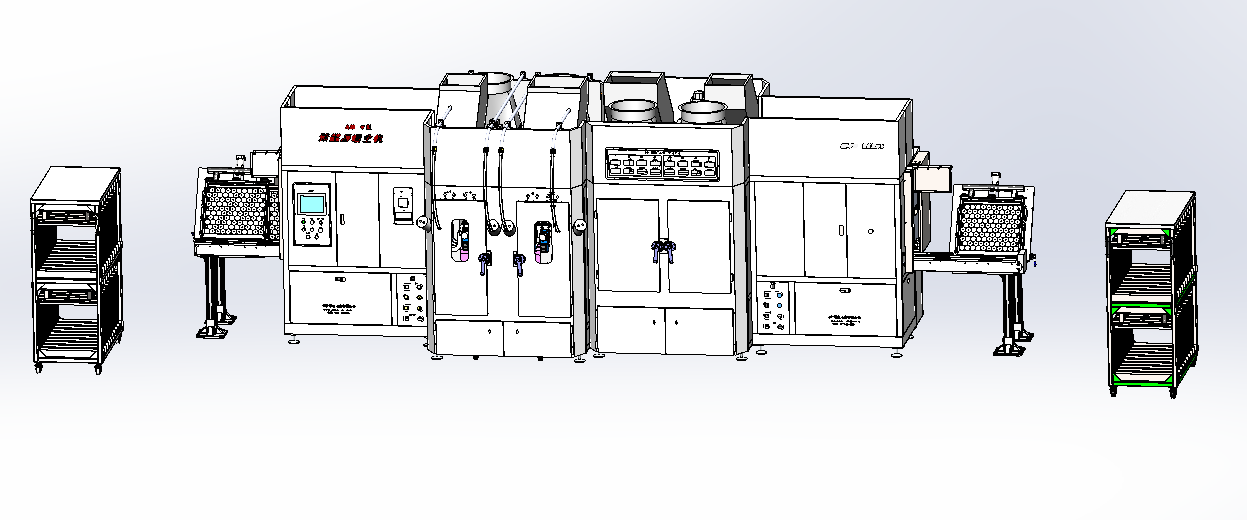

1 Appearance of the equipment (for reference only, the actual product shall prevail)

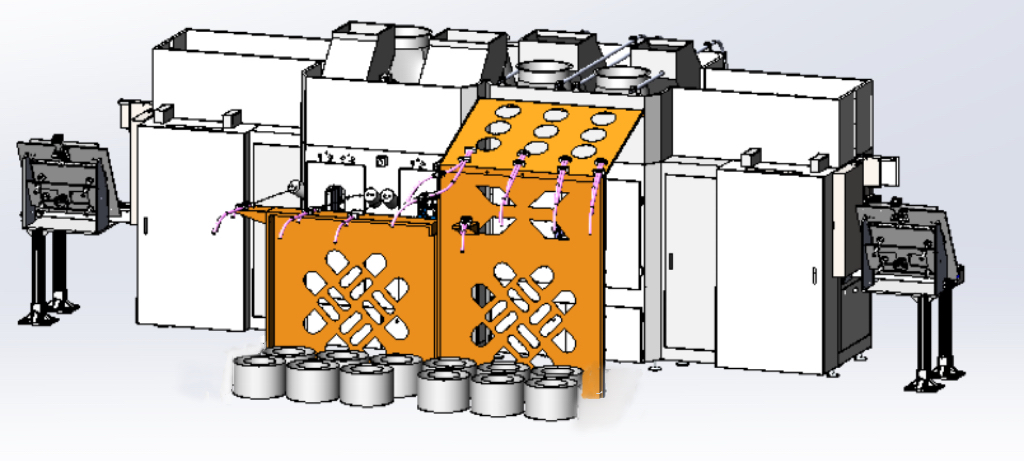

2 Description of the equipment structure

(1) The cabinet is welded with square tubes and cold-rolled plates, and the surface is thermally sprayed after rust removal. The cabinet has good sealing and uses three layers of imported sound insulation materials for noise reduction.

(2) From left to right, there are two spray chambers, namely: A spray chamber with guns 1-3 on the front and B spray chamber with guns 3-6 on the back, forming a 3+3 spray mode. The spray gun scanning adopts a servo system, and the gun distance of each spray gun can be adjusted independently.

(3) Spraying The gold frame conveying system has been carefully designed. The conveying is carried out by a frequency converter. The conveying system runs smoothly and is durable.

(4) The spray gun scanning adopts a servo system. The gun distance of each spray gun can be adjusted independently. The movement speed of the spray gun can be automatically adjusted through digital input on the touch screen. The spray gun is equipped with an automatic dust blowing function. The movement speed of the gold spray frame is controlled by the following parameters:

 (5) Upper exhaust dust removal system:

• a. The upper exhaust dust removal efficiency is high. Through the U-shaped wind, the air volume inside the independent cabin is enhanced, which effectively removes excess dust and reduces the pollution of the core end face.

• b. The wind force in the gold spray chamber is uniform, which saves energy significantly, reduces the dust removal capacity configuration, and reduces investment.

• c.The equipment is beautiful, compact and reasonable.

(6) The structure adopts rear-feed zinc wire

• A. Increase the portability of operation

• B. Reduce the occupied area of the site

3 Explanation of the working principle of the equipment

This equipment uses two charged gold spraying wires to collide during movement to generate a short-circuit current and form a high temperature to make the metal wires melt rapidly. The molten metal is sprayed onto the component by high-speed compressed air to form a gold spraying layer. The 8-gun two-sided independent gold spraying chamber adopts a left-in-right-out method of transportation. The core loading fixture is placed on the conveyor line and moves forward at a constant speed. It enters the loading area for manual loading and then stands up and pushes the fixture into the conveyor belt. When the core passes through the A gold spraying chamber, the spray gun moves up and down to complete the front 4 guns of gold spraying. When the gold spraying fixture moves to the B gold spraying chamber, the back gold spraying is completed in the same working method according to the required thickness at one time. At this point, all the gold spraying is completed, and then the core loading frame is automatically sent out by the conveyor belt to the unloading area for unloading.

4. Features of the equipment

(1) The equipment has good stability and is easy to operate;

(2) The spray gun uses dynamic power supply, which does not block or explode the wire;

(3) The equipment has good sealing performance;

(4) It uses a unique design of upper exhaust to remove dust;

• a. It does not form vortexes, does not turn black or blue;

• b. It removes dust quickly and has low pollution;

• c. The upper exhaust method is highly efficient, and the investment in dust removal is 20-30% less;

(5) The equipment is equipped with temperature and humidity detection functions.

(6) It is equipped with Jisheng's unique dust removal system, which makes the use effect more significant

5. Main parameters of the gold spraying machine:

7. Spare parts or wearing parts

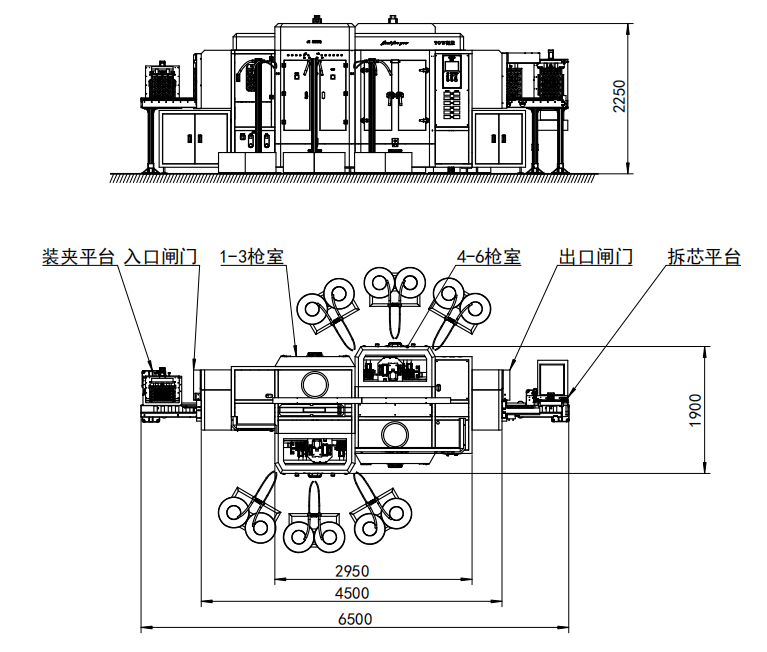

Equipment dimensions
